3.How does the RR11 work as USB dongle?

[Connecting player/phone/computer]

1.Switch the function selection switch to AMP mode.

1. Use the Type C to Type C cable comes with RR11 to connect the player/phone/computer which supports USB audio output and the RR11. Play the audio and realize the power amplification effect. (Please pay attention to the direction of the cable)

2. Connect your phone and start FIIO CONTROL APP, there will be more surprises!

Decoding capability: up to 384kHz/32bit

[Note]

1.Due to the systems and hardware differences in Android phone or player, some devices may have compatibility issues;

2.Some cell phones may need to enable the OTG function manually in order to use normally.The specific settings can consult the corresponding cell phone customer support.

3.Some cell phones will prompt "non-certified digital headset", you can ignore the prompt normal use.

4.iPhone 15 or below models need to be connected via the lightning to Type-C adapter.

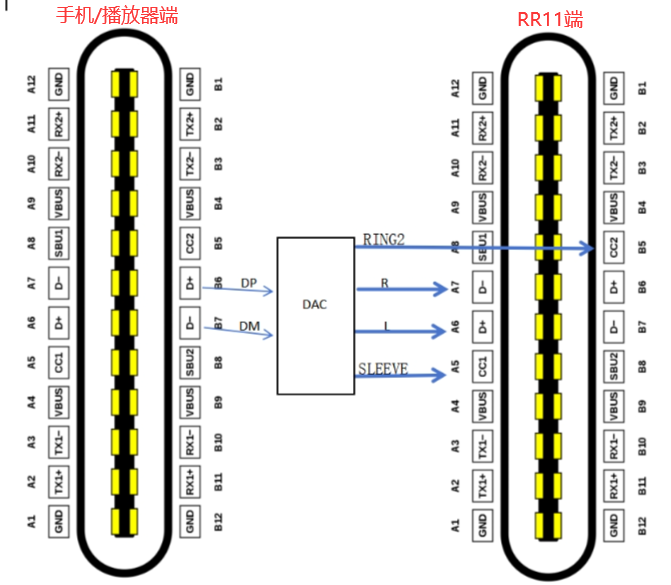

What is the pinout definition of the Type C to Type C cable?
