2. TT13 first use and button introductions

First installation notes:

1) When installing the turntable platter, ensure it rotates smoothly and evenly.

2) To remove the stylus protector, gently push it outward.

3) Pay attention to the two main parameters of vinyl records:

a. Size: Supports 7-inch and 12-inch records. The TT13 has a selector switch on the rear panel—set it to the correct position.

b. Speed: Vinyl records typically indicate their speed. The TT13 supports 33 RPM and 45 RPM.

4) TT13 output support

RCA output

Bluetooth transmission (Bluetooth version only)

5) TT13 power supply

Supports both 12V DC input and AC power (switchable).

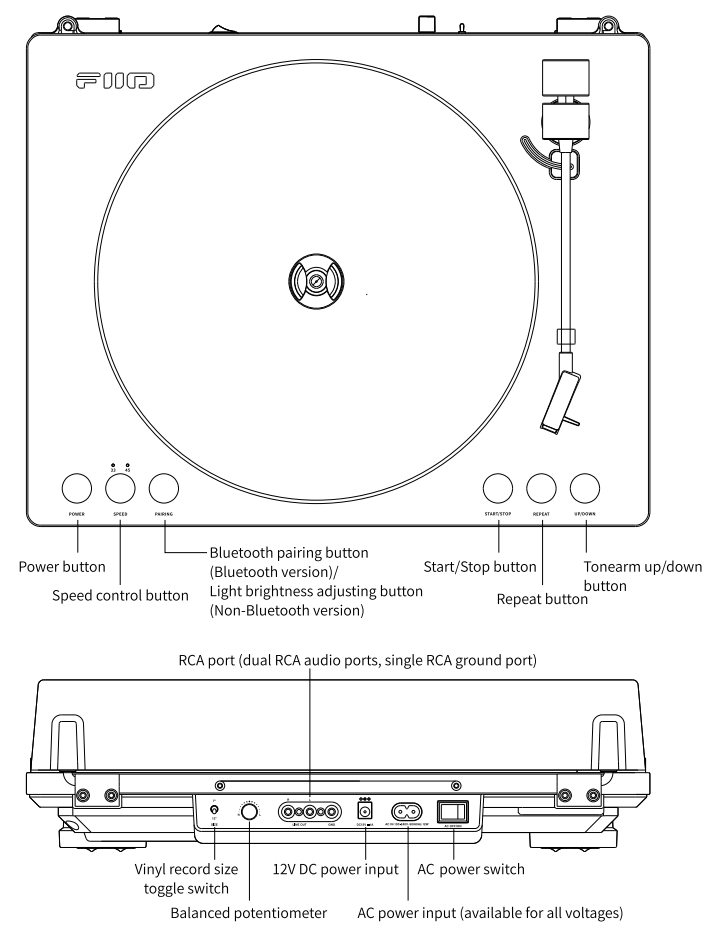

TT13 buttons and ports labeled

Other frequently asked questions about TT13

1) Can I replace the cartridge myself?

You can only replace it with the same model (AT-3600LA). Since the TT13 has an automatic tonearm, we've already optimized all parameters including tracking force. Other cartridge models cannot be used.

2) What is the tracking force of TT13's stylus?

The specified tracking force for TT13's stylus is 3.5±0.5g.

3) What drive system does TT13 use?

TT13 uses gear drive internally and belt drive for the platter.

4) What is the knob on TT13's rear panel for?

Due to inherent analog signal output variations between left/right channels (which are technically difficult to eliminate completely), this knob helps balance channel volume differences. If you notice uneven volume between channels, adjust this knob to compensate.

5) Does TT13 support manual song selection?

Yes. While being an automatic turntable with remote-controlled track skipping, it also supports manual selection.

6) Does TT13 support both PHONO and LO outputs?

As an entry-level turntable, TT13 only supports Line-out output but not PHONO output.

7) Can TT13 convert vinyl tracks to digital files?

No, this function is not supported.
