Audiophile-grade 75W toroidal transformer

12V/15V dual voltage support, 3A high current output

Fully discrete voltage regulator circuit + dual-MOSFET parallel current amplification output Relay-controlled transformer voltage switching ELNA/Rubycon/WIMA capacitors

Self-resetting fuse overcurrent protection | Precision potentiometer for voltage fine-tuning Minimalist Tech Family-Style Appearance

Low-noise regulated linear power supply

넳 넲

Audiophile-grade

75W toroidal transformer

Specifically designed for low-noise audio, this toroidal transformer utilizes a grain-oriented silicon steel circular core process for higher efficiency and minimized eddy currents. The seamless, fold-free coil design ensures a uniform magnetic field and minimal magnetic leakage. With a 75W reserve, it effortlessly handles high-dynamic transient demands, delivering solid bass extension and a vividly clear soundstage.

넳 넲

DARKSIDE PRO

FIIO Power Purification series

DARKSIDE | Introducing FiiO’s power purification series of products, meticulously engineered for your HiFi audio system.

DARKSIDE PRO lives up to its name by providing

an ultra-silent, pitch-black background,

letting the true essence of your music shine through.

넳 넲

Audiophile-grade components throughout

넳 넲

two DAC chips ES9068AS process the left and right channels respectively, and refine the "core" polishing quality and sound quality. Listen to your favorite playlist and revel in the beautiful singing in an instant.

high-performance dual-core, sound into your heart

Fully discrete NMOS

voltage regulator circuit

Dual high-current IRFZ34NPBF MOSFETs are used in a parallel configuration to lower internal resistance. The result is improved dynamic range and ensures that every nuance of the audio is faithfully preserved. With fully discrete voltage regulator circuit and high-precision reference, ultra-low noise and lightning-fast transient response are achieved—all while effectively minimizing heat generation.

넳 넲

An integrated relay manages the transformer’s output voltage to provide a precise match for both 12V and 15V settings. Such a design maximizes power efficiency and significantly reduces heat generation during operation.

Relay-switched 12V/15V output

Precision thermal control

넳 넲

The device uses a 46W low-noise, low-frequency toroidal audio linear transformer. Toroidal transformers have innate advantages: the toroidal core made with non-oriented silicon steel strips provides high efficiency and low eddy current loss, while the corner-free coils result in a more uniform magnetic field and less leakage. Thanks to this power supply, the WARMER R2R is fed clean power that allows it to produce pristine, immaculate sound.

Minimalist aluminum chassis

Aesthetics meets performance

넳 넲

Precision calibration, Intelligent protection

넳 넲

①---------------------------------------DARKSIDE PRO *1

②------------------------------------------DC power cord*1

③------------------------------------------AC power cord*1

④---------------------------------------------- Spare fuse*1

⑤-------------------------------------- Quick start guide*1

⑥----------------------------------------- Warranty card*1

Packing list

넳 넲

Buttons and ports labeled

①Power switch: Turns the device on or off

②Output voltage display panel: Indicates the current output voltage

③DC power output port: Outputs DC voltage via a power cable

④DC output voltage toggle switch: Switches between 15V and 12V output; please ensure the selected voltage matches the operating range of the connected device

⑤Output voltage fine-tuning resistor: If a slight deviation occurs in the displayed voltage value, use a flat-head adjustment tool to insert and turn for correction

⑥Input fuse tube: If damaged, it must be replaced by a qualified professional with the correct specification; please do not attempt the replacement yourself

⑦AC power input port: For devices with dual voltage options(220- 240V~ or 100-120V~), please always confirm that thelocal mains supply voltage matches the input voltage label of this urnitbefore connecting

넳 넲

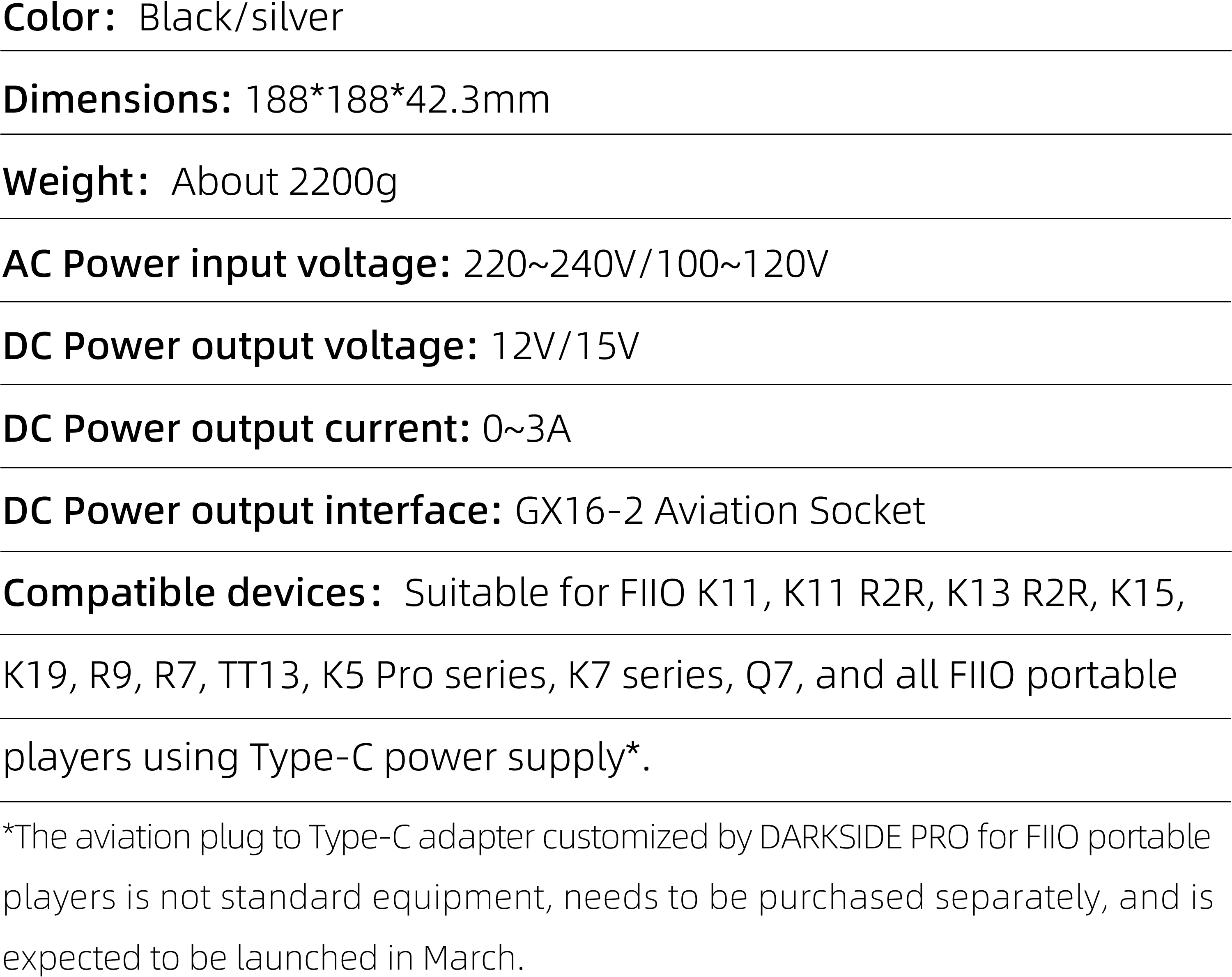

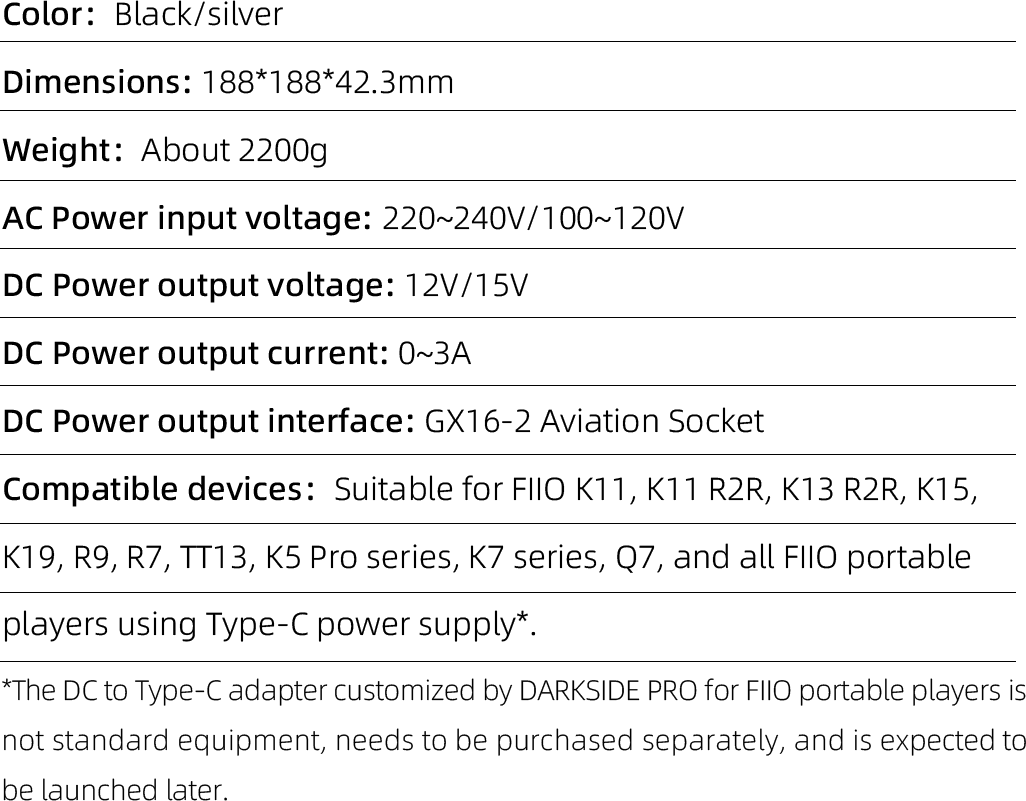

Basic Parameters
