23. How to use the USB microphone function in BTR17?

Please update the Bluetooth firmware of your BTR17 to V1.1 or above first.

Windows computer (Take Win10 as example)

1. Set the working mode to PC or PHONE for BTR17. Connect both USB ports ‘POWER IN’ and ‘USB’ to the computer via USB. You could use UAC decoding and USB microphone function in BTR17 now. The USB microphone function is realized via the ‘POWER IN’ port.

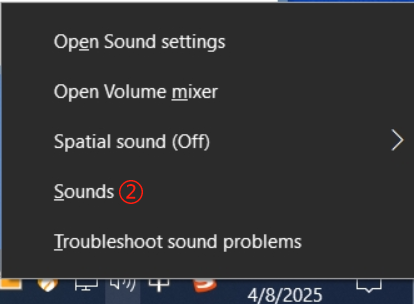

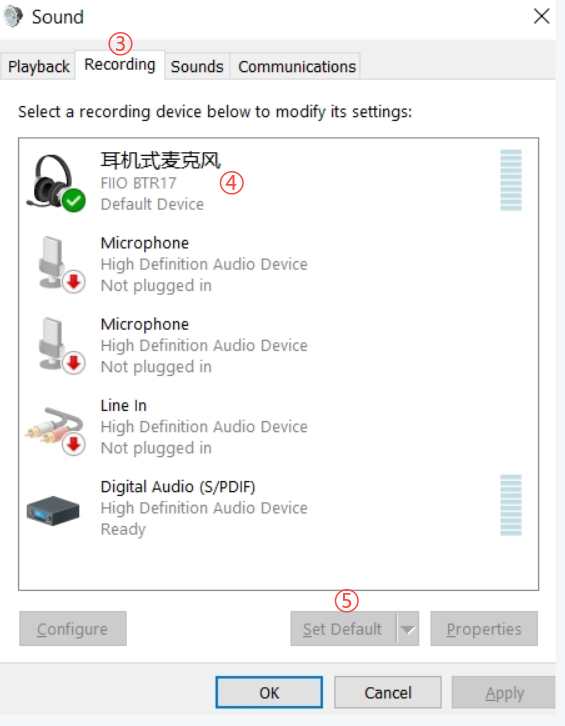

2. Right click the Sound icon in the notification area, then click "Playback devices". Select BTR17 as record device in Record page.

MAC system

1. Set the working mode to PC or PHONE for BTR17. Connect both USB ports ‘POWER IN’ and ‘USB’ to the computer via USB. You could use UAC decoding and USB microphone function in BTR17 now. The USB microphone function is realized via the ‘POWER IN’ port.

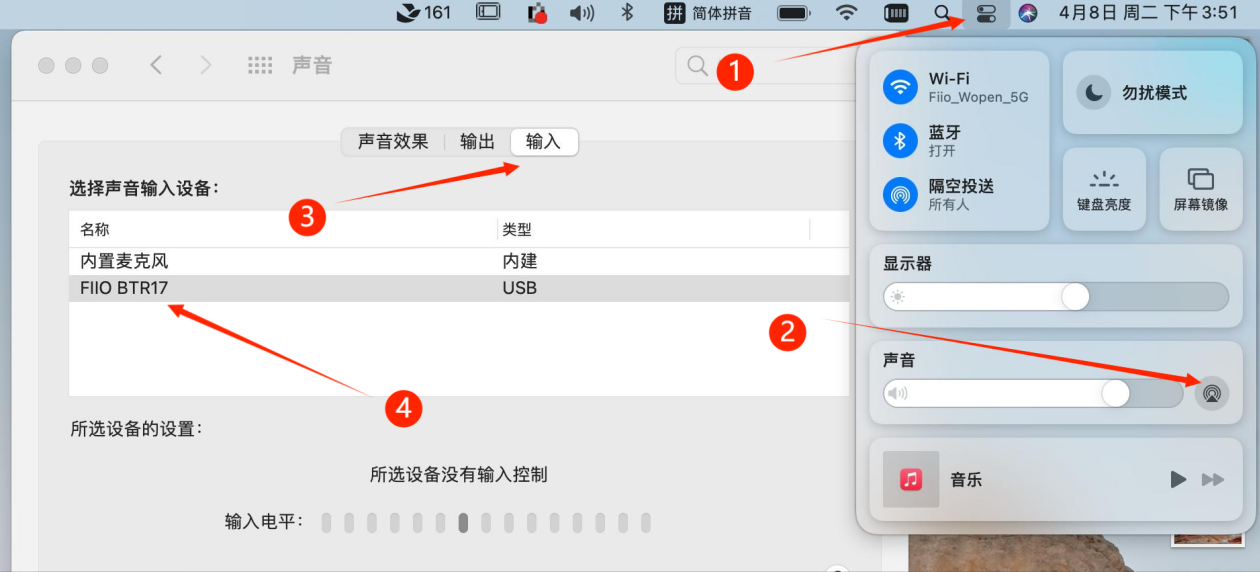

2. You could select sound preference from system preference or the sound icon in the status bar. Please select BTR17 as input device.
