13. How to output coaxial digital signal from M21?

1.Player Settings - Audio - 3.5mm output selection, set to SPDIF.

2.Connect one section of coaxial cable to the 3.5mm audio port of M21, and connect the other end to the coaxial decoding device.

3.Play music on M21 player software to output coaxial signal.

Note:

a. At this time, the coaxial signal is decoded in the third-party decoding equipment, M21 to realize the turntable function.

b. If the playback has no sound, it is recommended to set the system settings - Audio - SPDIF OUT, to D2P.

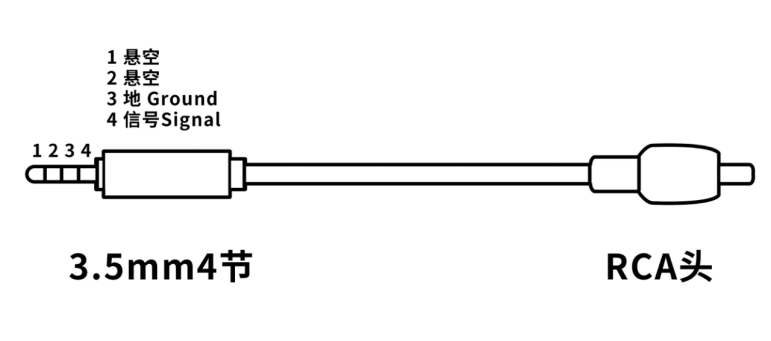

c. The definition of the coaxial cable:
